RookeryOS — Dual-Container Pod Architecture

Two containers. One operating system. The LLM is the kernel.

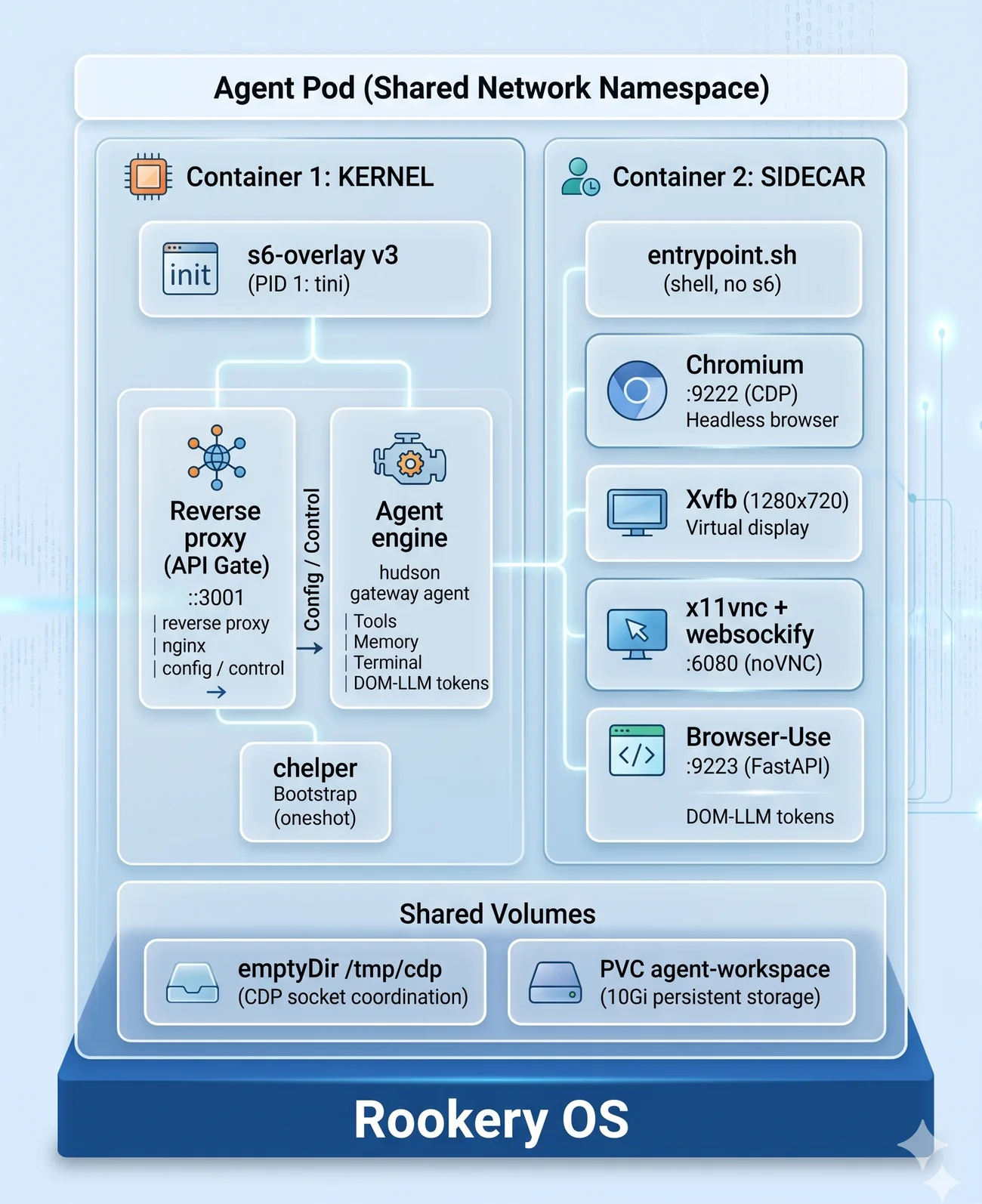

Architecture Diagram

Container 1: Kernel

The Kernel is the brain of the pod. It runs Hudson Gateway — the agent execution engine that orchestrates LLM calls, tool invocations, memory management, and terminal sandbox operations.

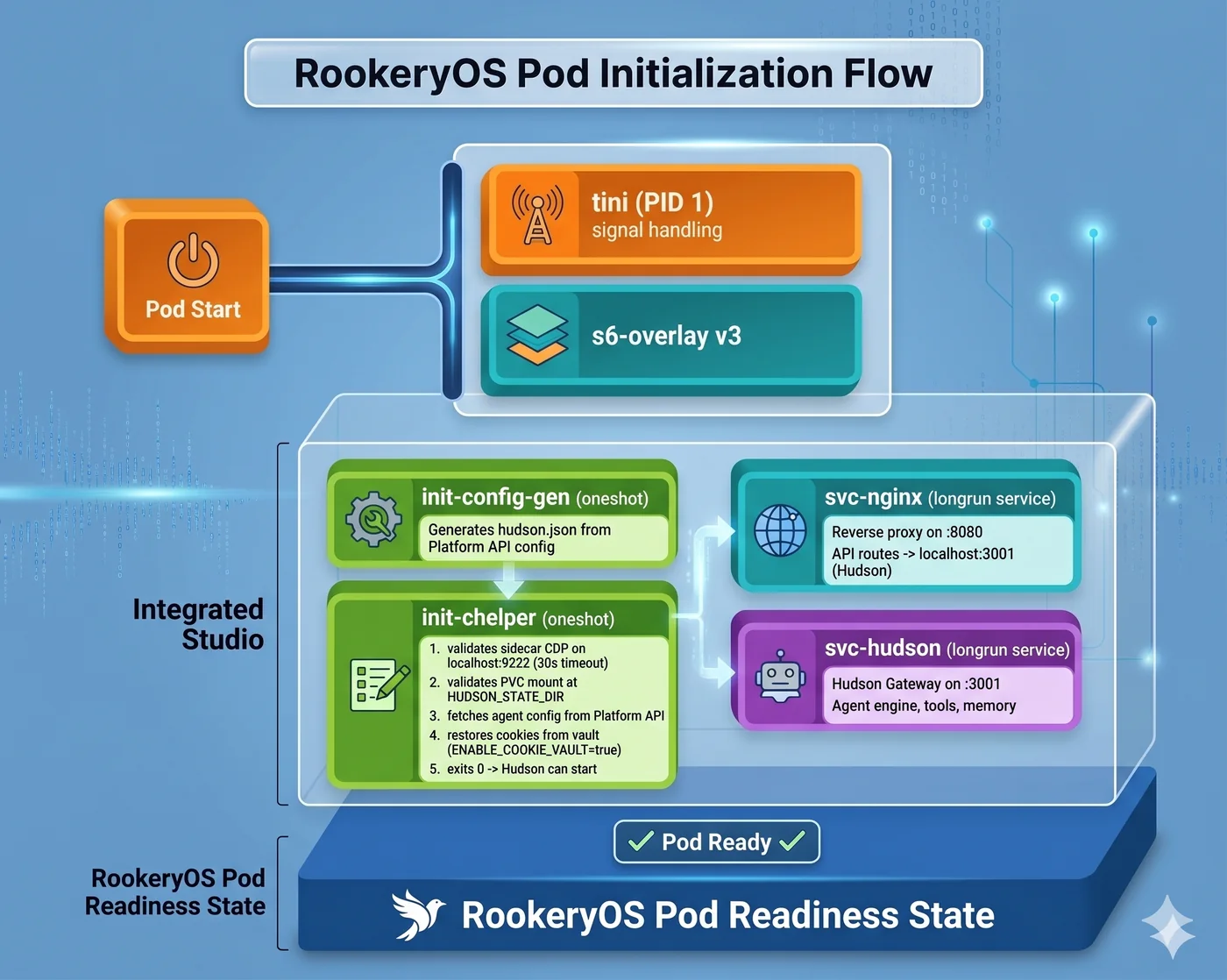

Boot Sequence

Kernel Components

Component	File	Purpose
chelper	apps/hudson-gateway/src/bootstrap/chelper.ts	Bootstrap validator
Hudson Gateway	apps/hudson-gateway/	Agent execution engine
Sidecar Browser Provider	apps/hudson-gateway/src/browser/sidecar-browser-provider.ts	CDP connection to sidecar
Browser-Use Bridge	apps/hudson-gateway/src/browser/browser-use-bridge.ts	DOM distillation bridge
Login Detector	apps/hudson-gateway/src/tools/login-detector.ts	Auth page heuristics
HITL Controller	apps/hudson-gateway/src/tools/hitl-controller.ts	Human-in-the-Loop flow
Cookie Injector	apps/hudson-gateway/src/tools/cookie-injector.ts	Cookie restoration
Output Formatter	apps/hudson-gateway/src/tools/output-formatter.ts	Lighthouse format output
nginx	s6-overlay config	Reverse proxy, static assets

Kernel Docker Image

Base: rookery-os-base (hardened Debian bookworm-slim)
  → node:22-bookworm-slim (Node.js runtime)
    → Hudson Gateway compiled JS
      → s6-overlay service definitions

Location: infrastructure/docker/rookery-kernel/Dockerfile

---

Container 2: Sidecar (Eye/Hand)

The Sidecar provides the browser interface. It runs a headless Chromium browser that the kernel controls via CDP, plus a VNC stack so humans can see and interact with the browser when needed.

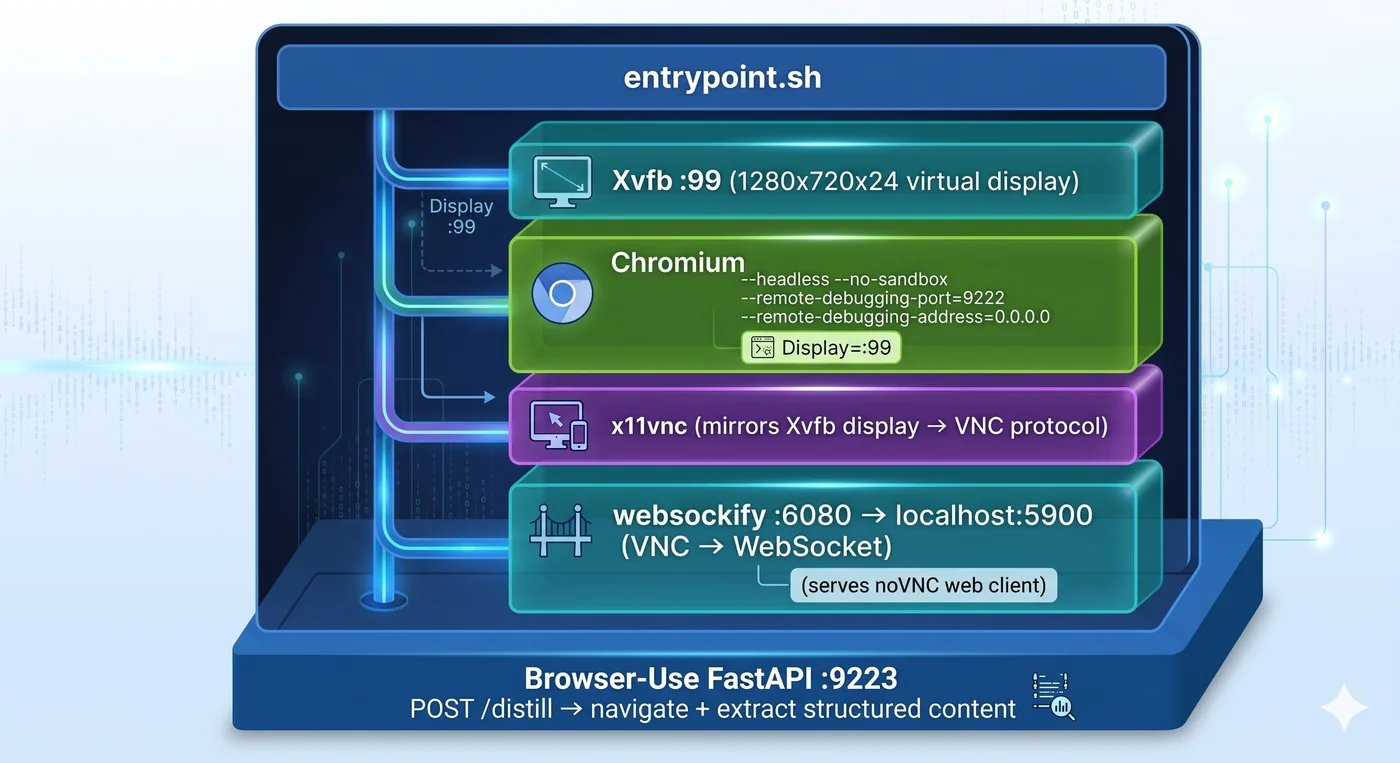

Service Stack

Sidecar Components

Component	Port	Purpose
Chromium	9222 (CDP)	Headless browser, controlled by Kernel via CDP
noVNC	6080 (HTTP/WS)	Browser-based VNC client for human viewing
Browser-Use	9223 (HTTP)	Python FastAPI for DOM distillation

Browser-Use DOM Distillation

The Browser-Use service converts raw web pages into LLM-readable tokens:

# POST /distill
{
  "url": "https://salesforce.com/dashboard",
  "action": "extract"  # or "click", "type", "screenshot"
}

# Response
{
  "title": "Salesforce Dashboard",
  "text": "Cleaned page content...",
  "links": [{"text": "Contacts", "href": "/contacts"}],
  "forms": [...],
  "is_login_page": false
}

Purpose: Instead of sending raw HTML (100KB+) to the LLM, Browser-Use distills it to structured, meaningful content (~2KB). This saves tokens and improves accuracy.

Location: infrastructure/docker/rookery-sidecar/browser-use-server.py

---

Inter-Container Communication

CDP (Chrome DevTools Protocol)

The primary communication channel between Kernel and Sidecar:

Kernel (Hudson Gateway)
  → Playwright CDP connection to localhost:9222
    → Sidecar Chromium
      → Navigate URLs
      → Click elements
      → Extract content
      → Take screenshots
      → Execute JavaScript

Why localhost? Both containers share the pod's network namespace. localhost:9222 in the Kernel reaches 0.0.0.0:9222 in the Sidecar.

noVNC (Human-in-the-Loop)

When a login page is detected, humans view the browser through noVNC:

Human browser
  → app.agentworksstudio.com/novnc-proxy
    → API Server WebSocket relay
      → Pod Sidecar :6080 (noVNC)
        → Xvfb display
          → Chromium browser (visible)

Browser-Use (DOM Distillation)

When the agent needs to understand a page:

Kernel (Hudson Gateway)
  → HTTP POST to localhost:9223/distill
    → Sidecar Browser-Use FastAPI
      → Navigates page via CDP
        → Extracts structured content
          → Returns clean JSON to Kernel

---

Shared Resources

emptyDir Volume: /tmp/cdp

A shared ephemeral volume for CDP socket coordination:

• Created with the pod, destroyed when pod terminates
• Used for passing CDP WebSocket URLs between containers
• Ensures Kernel and Sidecar can coordinate browser sessions

PersistentVolumeClaim: agent-workspace

A 10Gi persistent volume for agent state:

• Hudson workspace directory (HUDSON_STATE_DIR)
• Agent memory files and SOUL.md
• Session logs and conversation history
• Survives pod restarts and migrations

Not available for Navigator tier (ephemeral only).

---

Resource Allocation

Container	CPU Request	CPU Limit	Memory Request	Memory Limit
Kernel	250m	1000m	512Mi	2Gi
Sidecar	250m	1000m	512Mi	2Gi
Total Pod	500m	2000m	1Gi	4Gi

Navigator Tier (Reduced)

Container	CPU Request	CPU Limit	Memory Request	Memory Limit
Kernel only	200m	500m	256Mi	512Mi
No Sidecar	—	—	—	—

---

Health Checks

Probe	Container	Endpoint	Threshold
Startup	Kernel	:8080/health	10s period, 3 failures
Liveness	Kernel	:8080/health	30s period
Readiness	Kernel	:8080/health	10s period
Sidecar	Sidecar	:9223/health	Custom script

---

Lifecycle

Provisioning

1. Agent Provisioner receives create request
2. Generates K8s manifest from agent-pod-v2.yaml template
3. Applies namespace, RBAC, NetworkPolicy
4. Creates PVC for persistent storage
5. Submits pod spec to K8s API
6. Pod starts → chelper bootstraps → Hudson ready

Running

1. Hudson Gateway listens for agent commands
2. Browser interactions go through Sidecar via CDP
3. Human-in-the-Loop events sent via WebSocket
4. Lighthouse knowledge queries via Platform API
5. Cookie Vault reads/writes via Platform API

Teardown

1. Agent Provisioner receives delete request
2. Deletes K8s pod, PVC, and all namespace resources
3. Cookie Vault entries cleaned up
4. Lighthouse documents preserved (tenant-level)

---

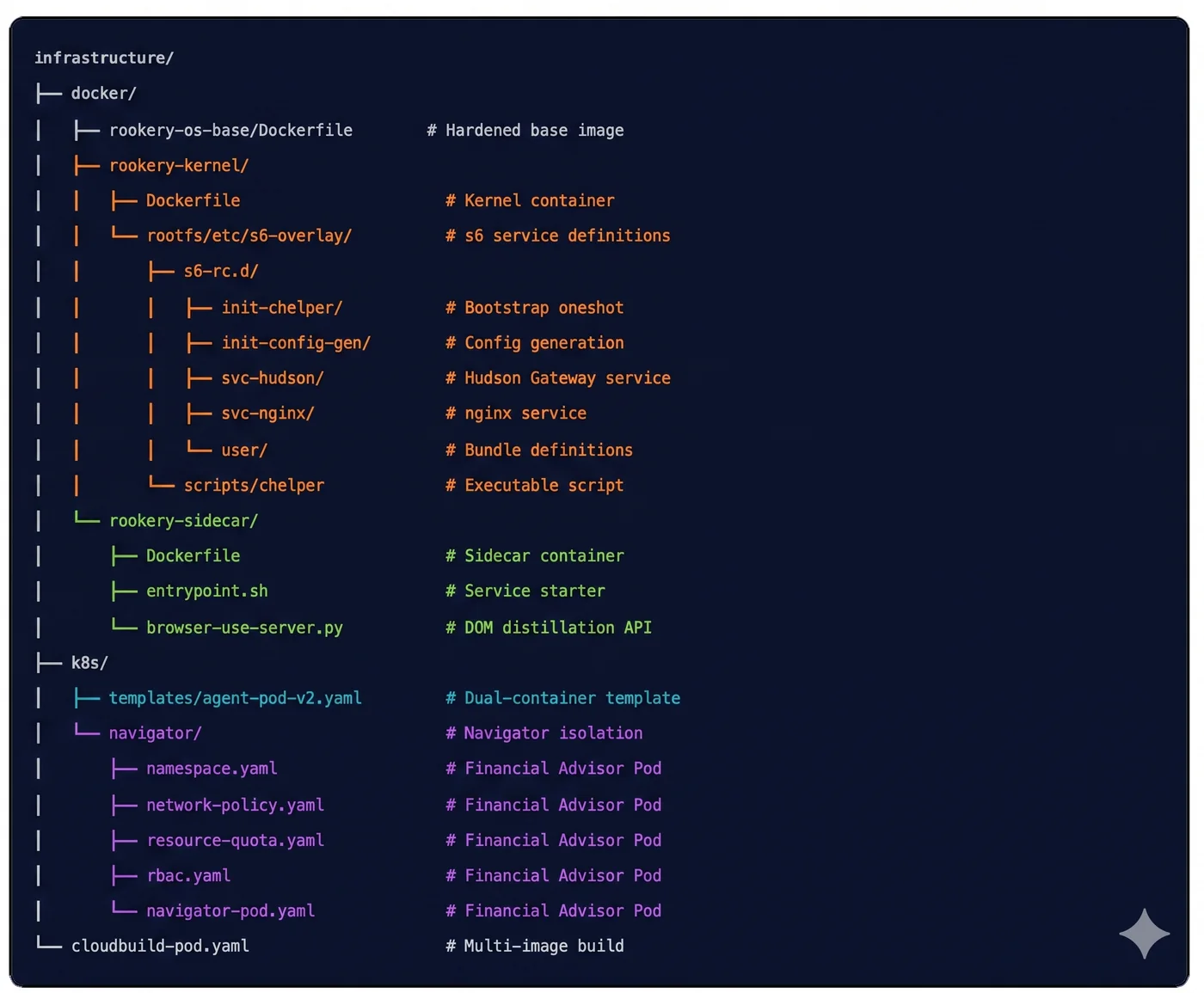

File Locations
